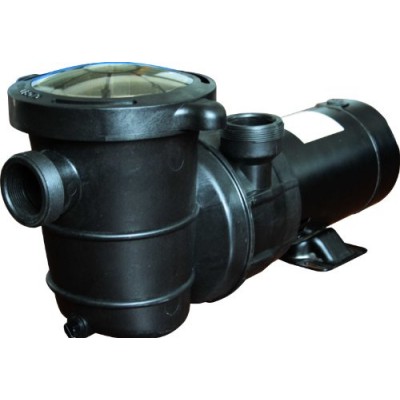

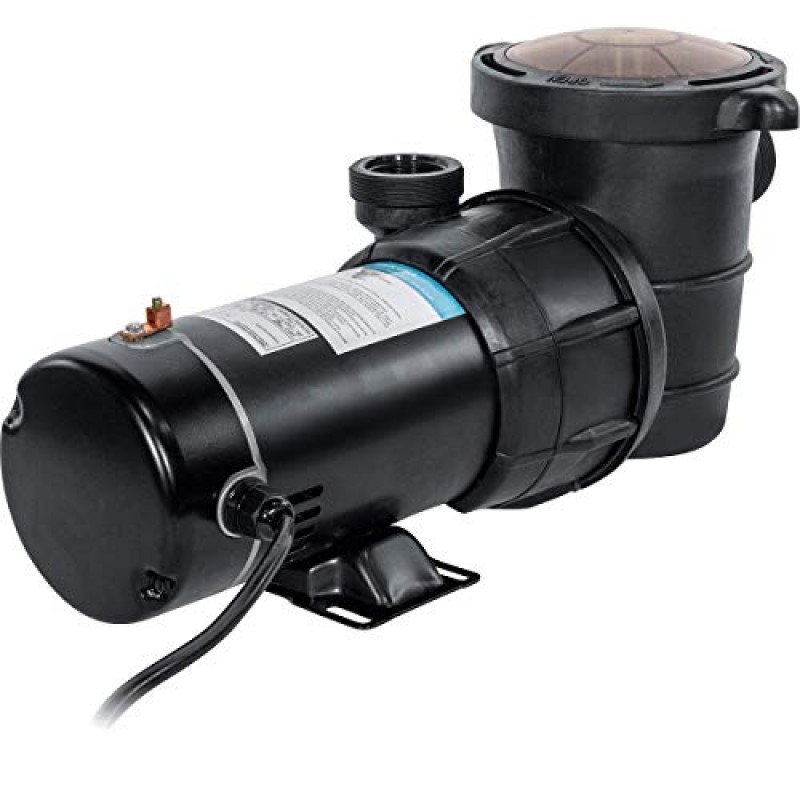

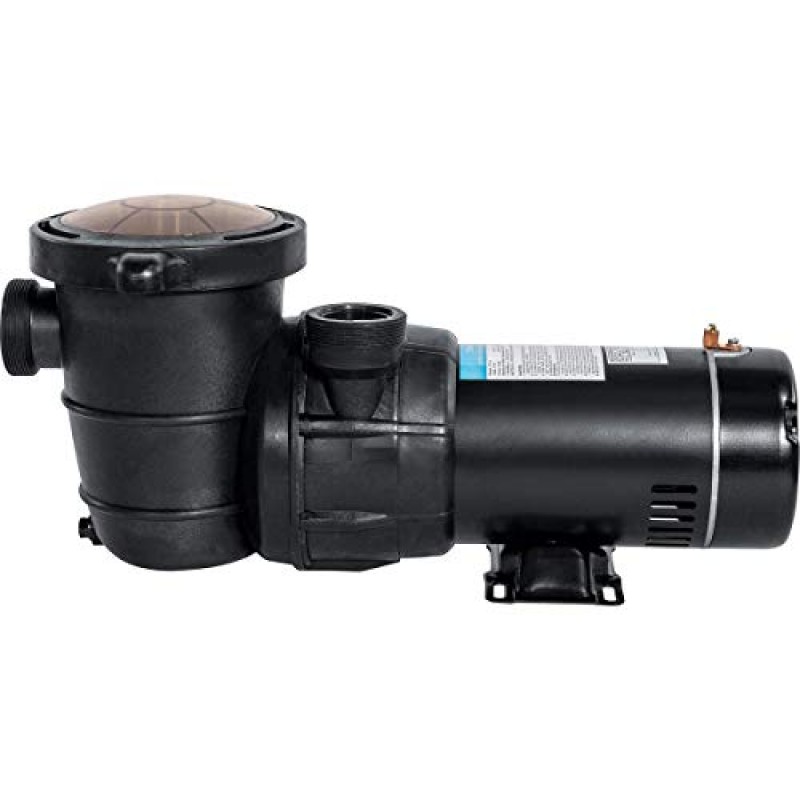

This 1.5 hp-115 volt Above Ground pump is very efficient, quiet, self priming and comes with a 6 Ft power cord. Its corrosion proof polymer construction will deliver years of reliable service. It is the same manufacturing quality construction, as Brand Name pumps, such as Hayward, Sta-Rite and Pentair.

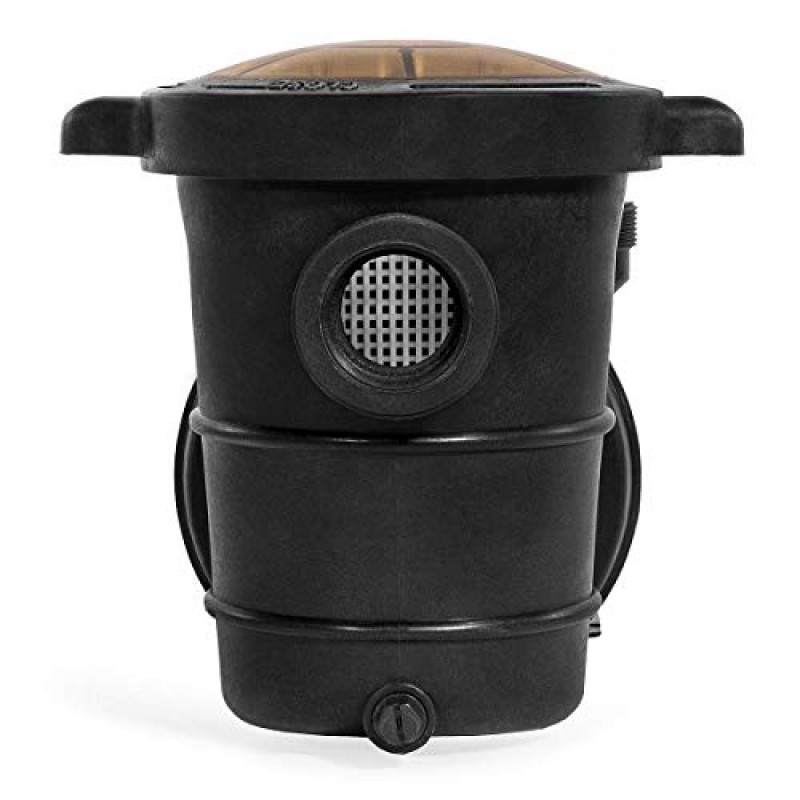

The suction and discharge ports are threaded for 1 1/2" fittings and provide excellent water flow. 2 - 1 1/2 inch pipe union fittings for easier pump removal are available. The transparent Twist-Lock lid and large comfortable handle allows for quick inspection of strainer which includes a large, easy to clean basket.
The pump has a convenient drain plug for easy winter maintenance. This pump. Designed and manufactured to meet all CSA and ETL requirements. The motor is equipped with automatic thermal overload protection, which allows the pump shut off under abnormal overheating and auto-restart when the motor temperature goes down.
Type: Electric Pool Filtration Pump
Material: PPGF30, PC+SS
Power: 1.5HP- 115V - 1750 RPM low speed, 3.6 Amps/3450 RPM high speed, 12 Amps - Single Phase - 60 HZ
Power Cord: Included
Number of Speeds: 2
Flow: 75 GPM
Head: 42 Ft
RPM: 1750 / 3450
Max Flow: 4500 GPH
Max Water Temp.: 104F
Max. Pressure: 40 PSI
Inlet/Outlet Fitting: 1.5" NPT
Waterproof Level: IPX5

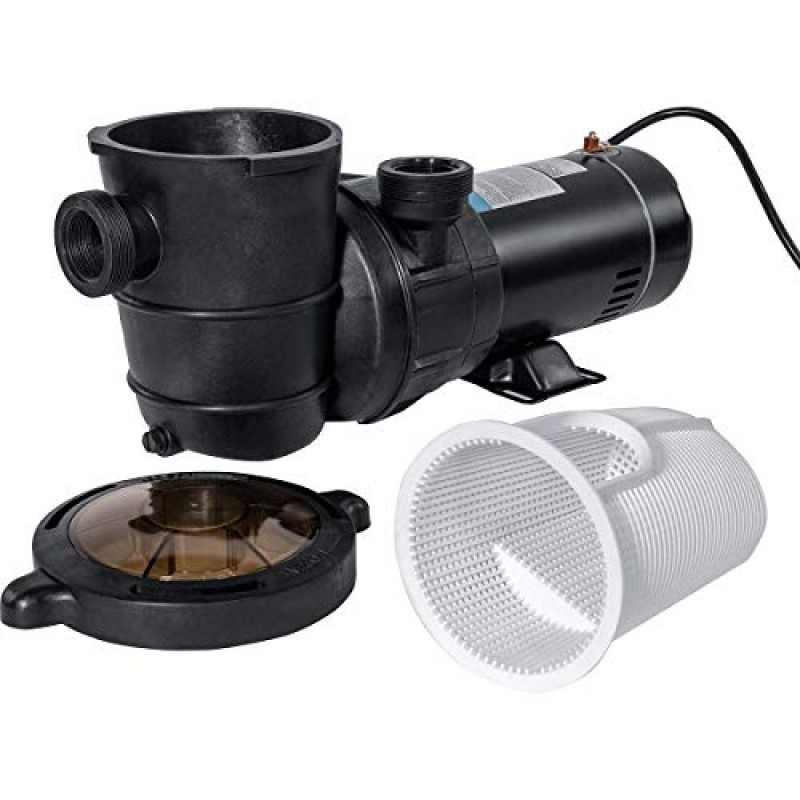

Electric Pool Pump & Pump Frame

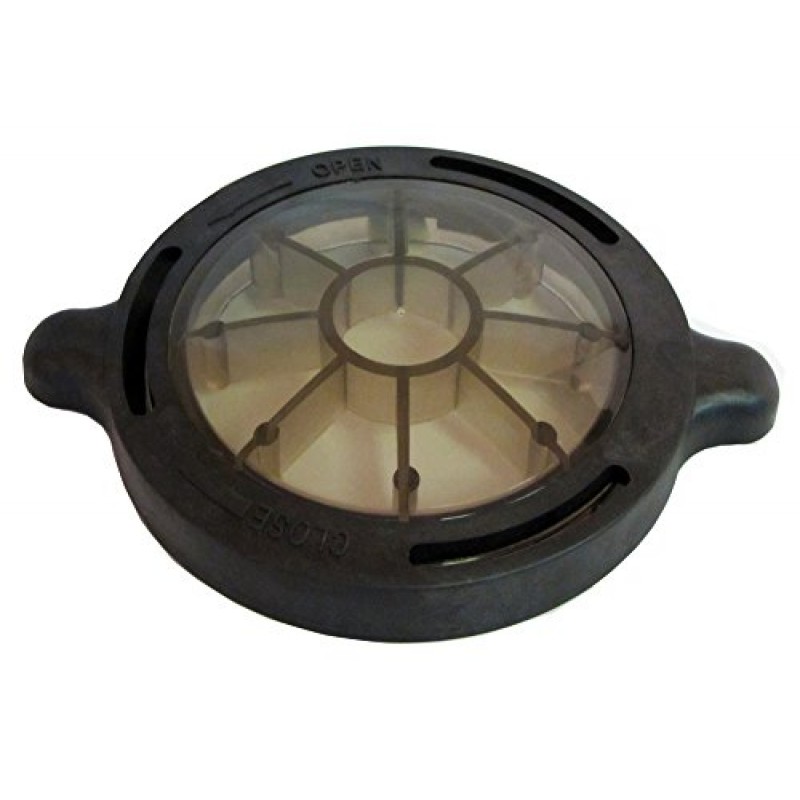

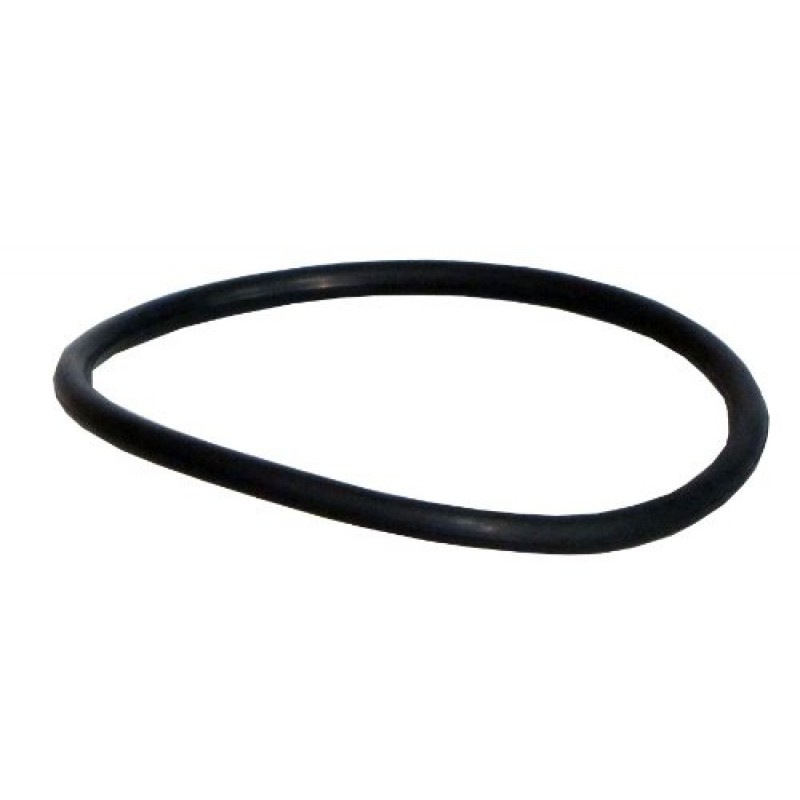

Pump Cover with "O" Ring

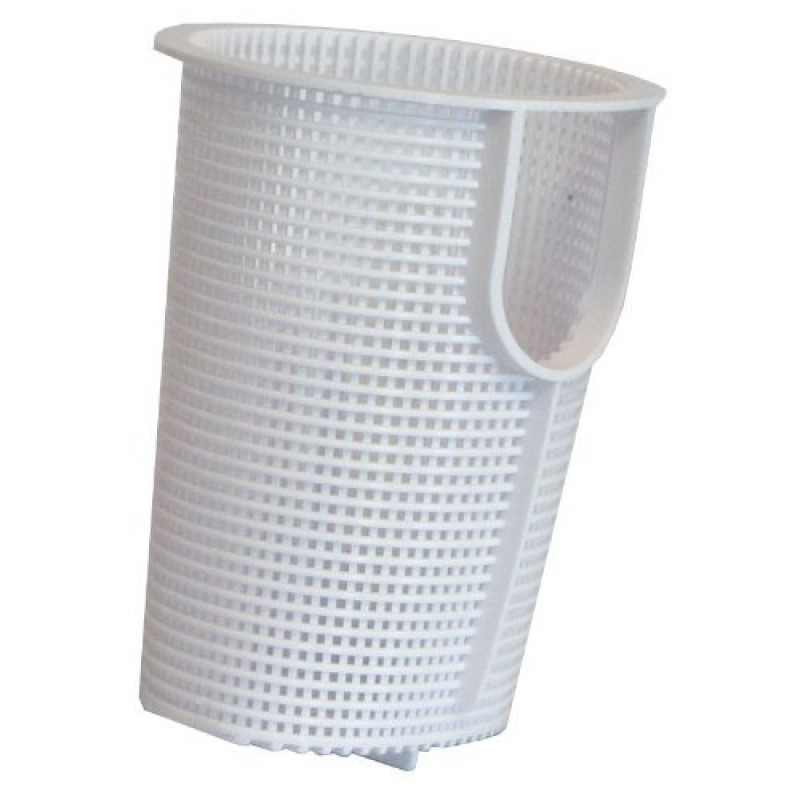

Pump Filter Basket
When installing, please consult qualified professional!
Intended for use with swimming pools, hot tubs, and spas!
- Meets new local codes requiring energy saving, multi-speed pool pumps
- 1750 RPM low speed, 3.6 Amps - energy saving for normal operations
- 3450 RPM high speed, 12 Amps for extra power when you need it
- Comes with 6 foot power cord
- 1.5 HP - 115 V - 75 GPM - H 13 m
Energy Efficient 2 Speed Pump for Above-Ground Swimming Pool 1.5 HP-115V
- Brand: SUNSOLAR
- Product Code: ACC-PUMP-AGP150-2S
- Availability: 20
Dynamic HeadThe effect of the Earths gravity on the "lift" or head pressure is fairly simple; for every vertical foot of distance the pump moves the water you are adding one foot of head pressure so the ratio is a 1:1 ratio. The effects of the friction, caused by water as it travels through your hose or pipes, on the total head pressure is a little more difficult to calculate especially as there are slight variations in pipe friction in different hose materials and the smoothness of the inner bore. Basically. for every ten feet of pipe through which the water has to travel travel horizontally will contribute 1 foot of head height; the ratio of the pipe friction loss is a 10:1 ratio.
Plumbing fixtures and bends and corners in your hose also increase the total head you must calculate to ensure the proper final volume from your pump. Every corner with a 90 degree elbow in your plumbing will add 1 foot of head pressure with a 1:1 ratio. 45 degree elbows, tees and even insert couplers can all have an impact on the final flow.
If you install a pump 40 feet away from the top of your waterfall which is 6 feet above the pump and the tubing is a single run of 40 feet horizontally then you add 4 feet of head for the tubing length (the 10:1 ratio) to the 6 foot differnetial between the pump location and the final height of the waterfall so your final total dynamic head calculation would be 10 feet. This means your final volume of water flow in this water feature or application would be the volume of flow on the performance curve that equaled the gallons per hour at 16 feet. This volume will certainly be much less than the initial volume the pump can move at an open flow or a zero head.
If in the above example your 40 feet of horizontal tubing run also required 3 elbows of 90 degrees then an additional 3 feet of theoretical head would be added and your final flow result would be at 19 feet on the performance curve of the pump. In this example you would want to choose a pump that has the desired GPH rating at 9 feet of head pressure. Tubing size is also an important factor in accounting for head pressure loss, in general you should never reduce the diameter of the tubing below what the output size of the pump is, this will drastically increase head pressure, and reduce pump performance. For maximum pump performance, using the largest tubing that is practical is the best choice. A best practice is to use a hose with an inner diameter that is the same as your pumps outlet fitting.
