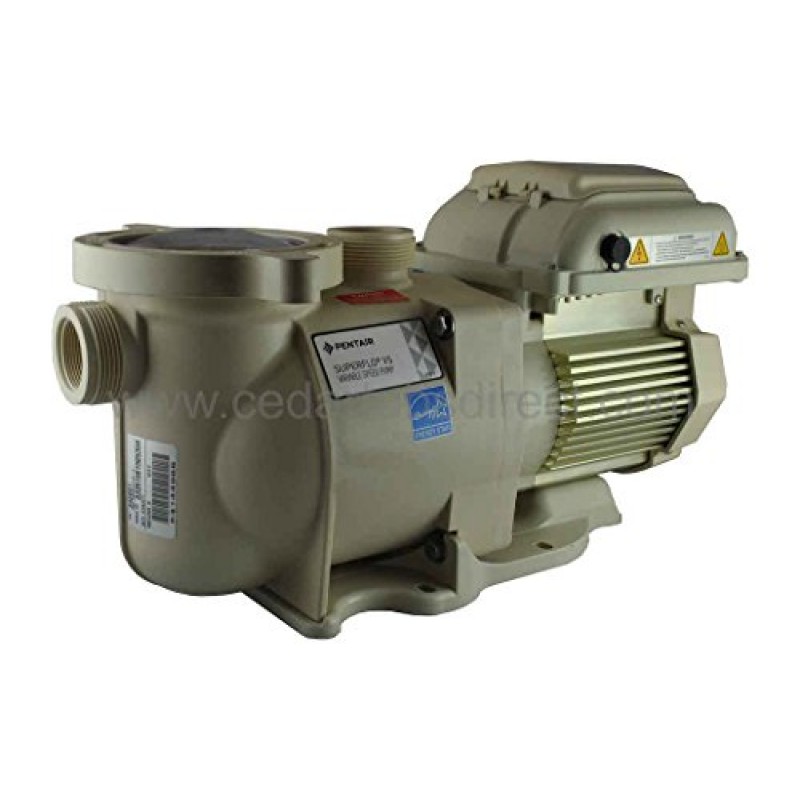

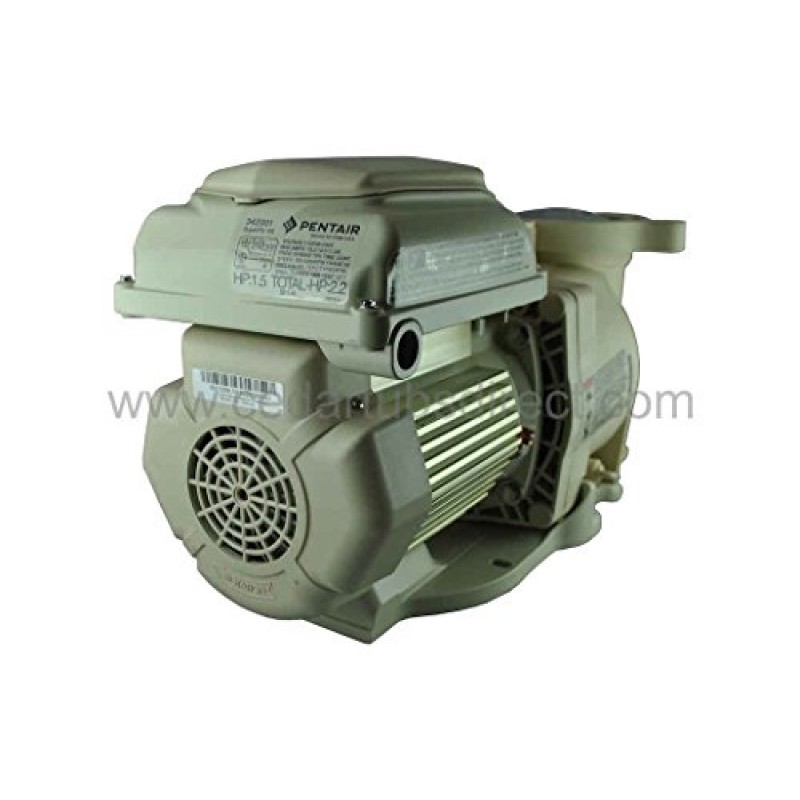

The Pentair Superflo VS - variable speed pump combines low operation costs and high energy efficiency, creatinga product that is un rivaled in its class. This pump is designed for variability. Almost every feature of the SuperFlo VS can be customized specifically for your pool configuration. This pump Includes variable power options (110V or 230V), variable horsepower(<1.5 HP), variable RPM rate (300-3450), and variable unionized fitting connection(1.5" or 2"). This pump is designed to run at the lowest possible speed while still maintaining a sanitary pool environment. This is why thispump is able to achieveenergy reduction savingsup to 80% compared toa normal single speed pump.All pumps from Pentair aquatic systems incorporate innovative hydraulic engineering that has been refined for over 40 years,delivering reliable products for years! Made of thick walled body partsand high quality components engineered and assembled in the UnitedStates, and withunsurpassedflexibility, ease of installation,and dependable operation,the Pentair SuperFlo VS is simply one of the finest pumps to ever hit the pool market.
  • Pentair SuperFlo VS - Variable Speed Pump - #353132
  • 3 programmable speed settings and adjustable manual override
  • Variable horsepower (
  • Variable RPM rate (300 - 3450)
  • 1 year manufactures warranty

Write a review

Note: HTML is not translated!
    Bad           Good

Pentair SuperFlo VS - Variable Speed Pump - #353132

  • Brand: Pentair
  • Product Code: UJ - SuperFlo VS Pump
  • Availability: In Stock

Dynamic Head

The effect of the Earths gravity on the "lift" or head pressure is fairly simple; for every vertical foot of distance the pump moves the water you are adding one foot of head pressure so the ratio is a 1:1 ratio. The effects of the friction, caused by water as it travels through your hose or pipes, on the total head pressure is a little more difficult to calculate especially as there are slight variations in pipe friction in different hose materials and the smoothness of the inner bore. Basically. for every ten feet of pipe through which the water has to travel travel horizontally will contribute 1 foot of head height; the ratio of the pipe friction loss is a 10:1 ratio.

Plumbing fixtures and bends and corners in your hose also increase the total head you must calculate to ensure the proper final volume from your pump. Every corner with a 90 degree elbow in your plumbing will add 1 foot of head pressure  with a 1:1 ratio. 45 degree elbows, tees and even insert couplers can all have an impact on the final flow.

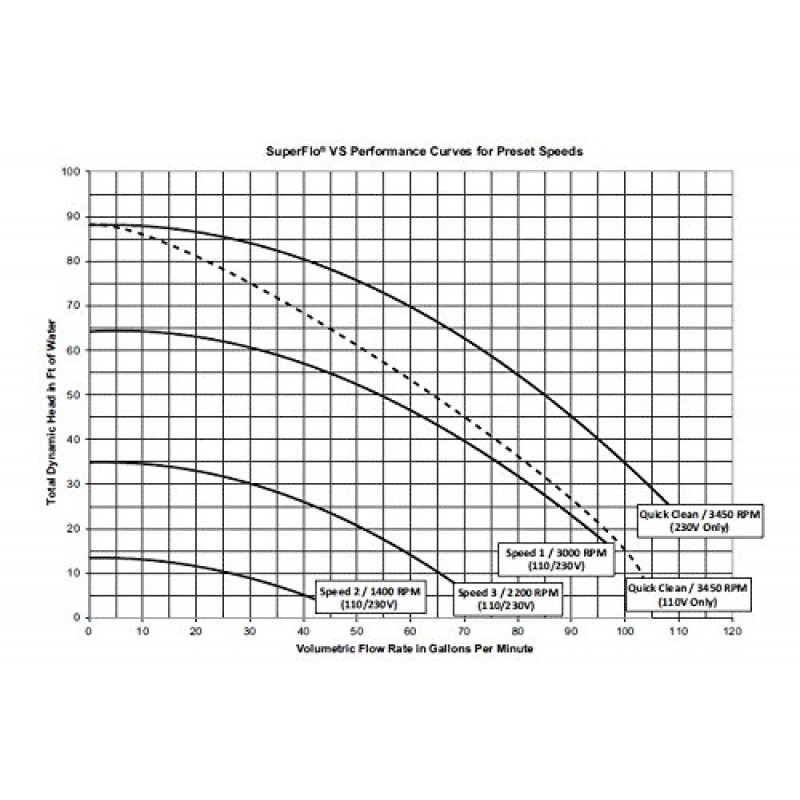

If you install a pump 40 feet away from the top of your waterfall which is 6 feet above the pump and the tubing is a single run of 40 feet horizontally then you add 4 feet of head for the tubing length (the 10:1 ratio) to the 6 foot differnetial between the pump location and the final height of the waterfall so your final total dynamic head calculation would be 10 feet. This means your final volume of water flow in this water feature or application would be the volume of flow on the performance curve that equaled the gallons per hour at 16 feet. This volume will certainly be much less than the initial volume the pump can move at an open flow or a zero head.

If in the above example your 40 feet of horizontal tubing run also required 3 elbows of 90 degrees then an additional 3 feet of theoretical head would be added and your final flow result would be at 19 feet on the performance curve of the pump. In this example you would want to choose a pump that has the desired GPH rating at 9 feet of head pressure.  Tubing size is also an important factor in accounting for head pressure loss, in general you should never reduce the diameter of the tubing below what the output size of the pump is, this will drastically increase head pressure, and reduce pump performance.  For maximum pump performance, using the largest tubing that is practical is the best choice. A best practice is to use a hose with an inner diameter that is the same as your pumps outlet fitting.
